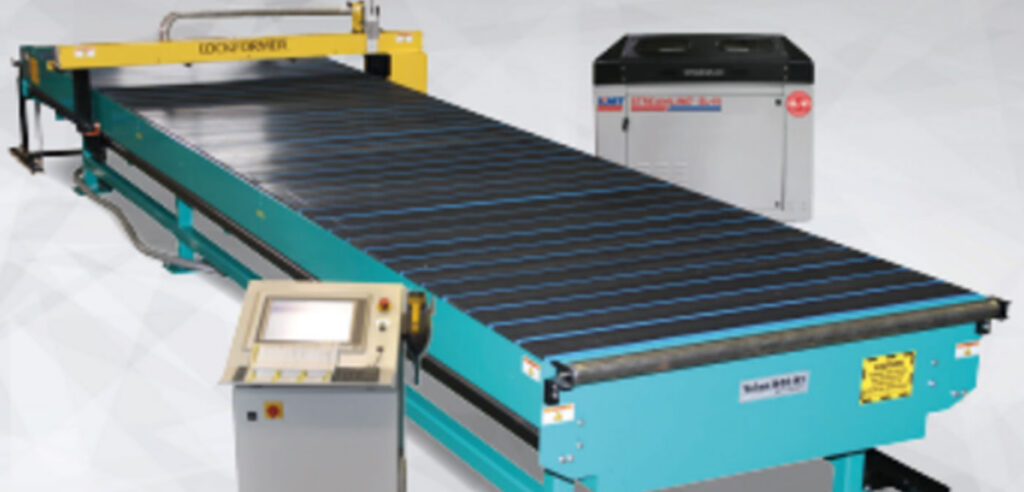

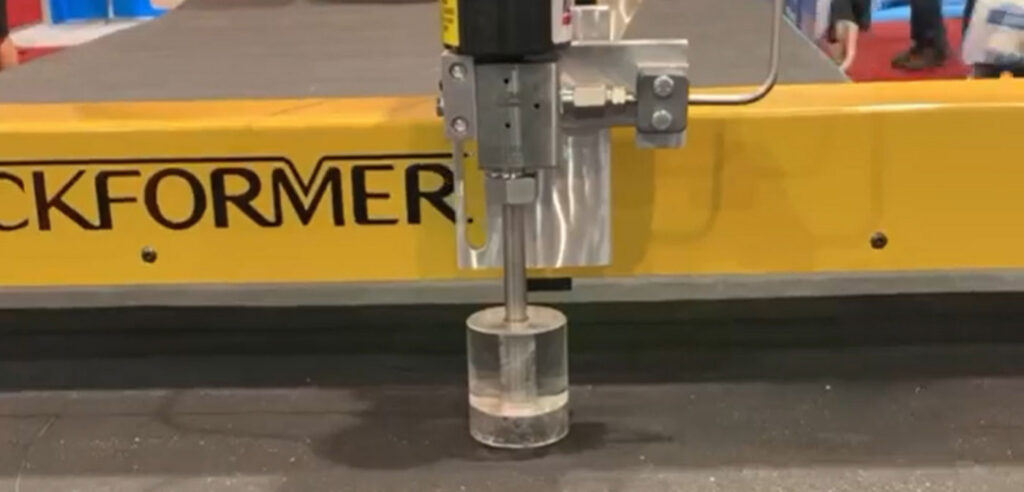

Lockformer Vulcan 1600 Fiberglass and Insulation Foam Waterjet Cutting System
Cutting insulation manually is a slow, costly and inexact procedure. The Lockformer Vulcan 1600 Fiberglass and Insulation Foam Waterjet Cutting System automates the insulation cutting and fabrication process for mechanical contractors delivering an unrivaled level of quality and efficiency. The machine will cut up to 4″ fiberglass or 2″ foam insulation at a maximum positioning speed of 3,000 IPM. Whether you require precise insulation shapes for square to rounds, radius elbows or transitions, the Lockformer Vulcan 1600 Waterjet Cutting System can deliver savings of over 95%. With its precision speed and efficiency, the Lockformer Vulcan 1600 Waterjet Cutting System can fabricate insulation fittings for about one-tenth of what it costs to buy them or one-tenth the time it takes to cut them by hand while also reducing your scrap waste by up to 75%.
SYSTEM FEATURES:
60″ x 120″ effective cutting area60″ x 240″ optional cutting table size
Up to 3,000 IPM cutting speed depending on the material type and thickness
4″ maximum cutting thickness
+/- 1/32″ positional accuracy
All Premium “plug-in” components
Unitized, fixture-welded, 3″ x 3″ steel tubing framework for strength and stability
Stand-alone control console
All axis home positioning using motor torque measurement
8″ x 8″ steel table leg pads with leveling feature
DRIVE FEATURES:
Dual precision Y-drive
Double deck, 24 strand steel, precision reinforced radial timing belts
HIWIN® linear x-axis bearing and way
3″ diameter x 128″ long, turned, ground and polished, heavy duty Y-axis guidance rail. Armaloy surface coated.
Precision cam followers
X-axis brush guard
Steel enclosed housing for X-axis servo drive motor
Y-axis drive housing enclosed and integral to the machine’s frame
SNC® brand vertical dual cylinder pneumatic torch lifter with adjustable up/down pressure
TABLE FEATURES:
1/4″ steel plate table perimeter
“Gull Wing” table design to protect the machine’s drive system and reduce the footprint size
Complete stainless steel table lining for rust-free performance longevity
Rectangular exhaust plenum at the back end of the table for easy access connection
Strategically located emergency stops [1 = controller; 1 = x-axis carriage]
