KMT waterjet OEM partner machines are powered by KMT pumps ranging from 6.200 bar to 3.800 bar, with installations available in over 100 countries.

PRO 6.200 bar Pumps – World’s Fastest Waterjet

The KMT Streamline PRO® 6.200 bar Waterjet Pumps will significantly increase production by cutting in less time and use up to 50% less abrasive to produce the Lowest Cost Per Part! The PRO pump is available in three horse-powers for a wide range of cutting applications: 125 and 60 PS

ABRALINE IV Abrasive Hopper

Precisely monitors abrasive feed usage during entire cutting process. Designed for large cutting machines which operate continuously and with multiple cutting heads. Capacity – 1.000 kg

STREAMLINE® SL-VI 4.100 bar Pumps

KMT Waterjet SL-VI Pumps have decades of proven performance and are considered the Industry Workhorse! The SL-VI Series of pumps are available in: 15, 30, 50 und 100 PS

ABRALINE V Abrasive Hopper

Precisely monitors abrasive feed usage during entire cutting process. Designed to sufficiently ensure the abrasive feed for average cutting needs. Capacity – 425 kg

KMT CLASSIC V-Drive 3.800 bar Energy Saving Pump

The STREAMLINE® CLASSIC with V-Drive combines the KMT proven intensifier concept with energy saving drive and control technology for energy savings and efficient waterjet cutting. Equipped with a speed-controlled motor drive, the CLASSIC V-Drive satisfies any criteria specifying an energy saving machinery.

FEEDLINE V Abrasive Feeder

Optimized abrasive consumption for customized applications. Controlled through a central CNC controller or a potentiometer, the FEEDLINE V supplies the cutting nozzle with the optimized flow of abrasive, saving material and costs.

IDE® Diamond Cutting Heads

The KMT Waterjet IDE^® (Integrated Diamond Eductor) One-piece Assembly Cutting Head is rated for pressures from 4.100 bar to 6.200 bar and is a waterjet nozzle breakthrough in simplicity & peak performance.

AUTOLINE® Cutting Heads

The self-aligning components of the KMT AUTOLINE^® 4.100 bar and 6.200 bar cutting heads provide true, perfect alignment to extend the life of focusing tubes and mixing chambers.

AQUALINE® Water-only Cutting Heads

PROVEN PERFORMANCE AT EXTREME PRESSURES! Our AQUALINE® pure water pneumatic valves have gained an industry-wide reputation for being among the quickest and the most reliable pure water cutting heads under extreme working conditions.

KMT CUT Calculator App

Compare 6.200 bar vs. 4.100 bar cutting and see how much faster you get the job done and at a lower cost per part! The KMT Waterjet Cut Calculator 2.0 App incorporates 25 materials, offers a wider range of substrate thicknesses, horsepower, orifice size, and abrasive rates.

ARA 3.800 bar Pump

The Ara™ high-pressure pump meets all essential requirements for successful, economical and seamless operation of a waterjet cutting system. The highly reliable “SSEC” intensifier design is one of the key features of the AraTM pump.
APPLICATIONS/INDUSTRIES
- APPLICATIONS
  - Metal
  - Stone
  - Food
  - Composites
  - HVAC
  - Glass
  - Paper
  - Plastic
  - Fiberglass
  - Other
- INDUSTRIES
  - Aerospace
  - Agriculture
  - Architecture
  - Automotive
  - Defense
  - Food/HPP
  - Glass
  - Packaging
  - Manufacturing
  - Other
SALES & SERVICE
DOWNLOADS/VIDEOS
ABOUT US

T MAC CNC Waterjet Cutting Systems

T MAC CNC is a leading manufacturer and solution provider specializing in CNC waterjet cutting for the stone industry.

ABOUT t mac CNC WATERJET MACHINES

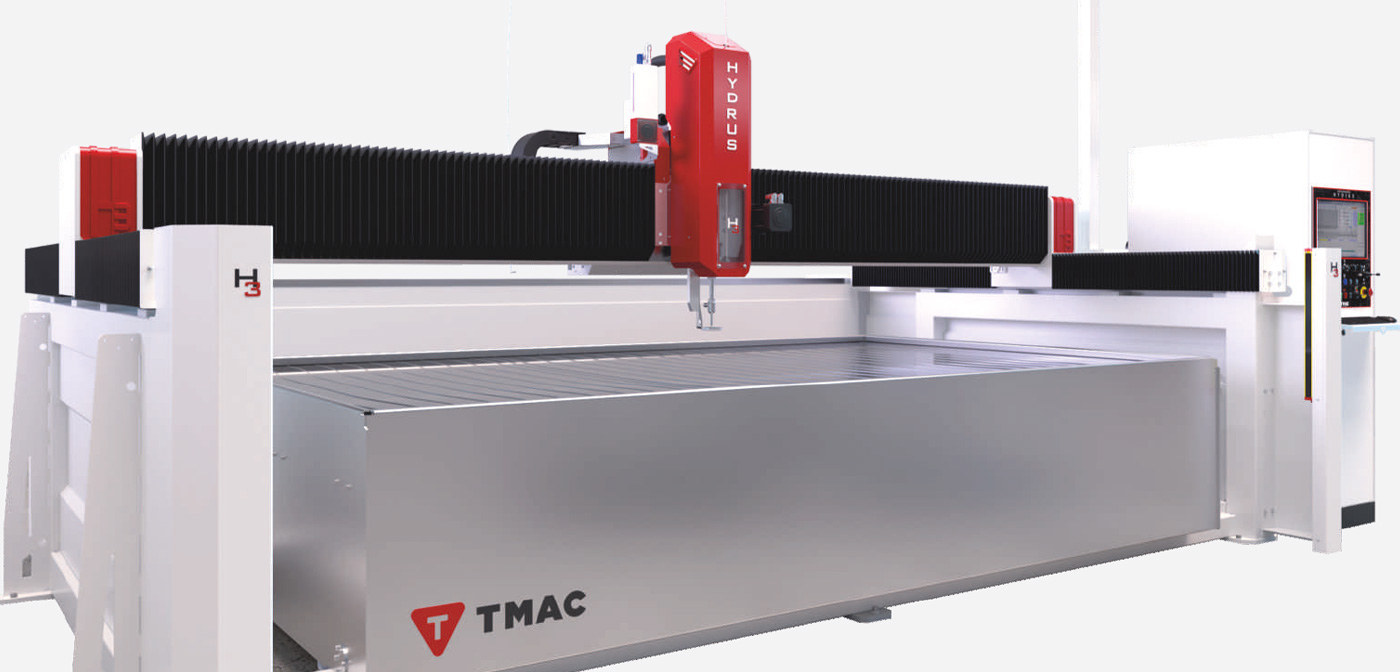

HYDRUS H3
Used for flat cutting by means of a high-pressure pump that emits a jet of water mixed with abrasive capable of pertorating and cutting with extreme precision the thickness of different materials such as: marble, granite, stone, metals, plastic, paper, wood, glass ceramic. The parts are moved by a recirculating ball guide, precision rack gearbox. The Z-axis is moved by means of a recirculating ball screw. A brushless-type motor for the axes completes the movement system, which, being composed of quality components, allows precision and repeatability of positioning down to a tenth of a millimetre, an indispensable feature for making precision cuts on surtaces destined for coupling such as inlays and mosaics.

3 interpolating axes (4th axis optional)
200 mm Z travel
Robust hot-dip galvanised steel construction
Painted stainless steel components
Automatic centralised lubrication
Brushless motors with absolute zero
High-precision recirculating ball bearing guides

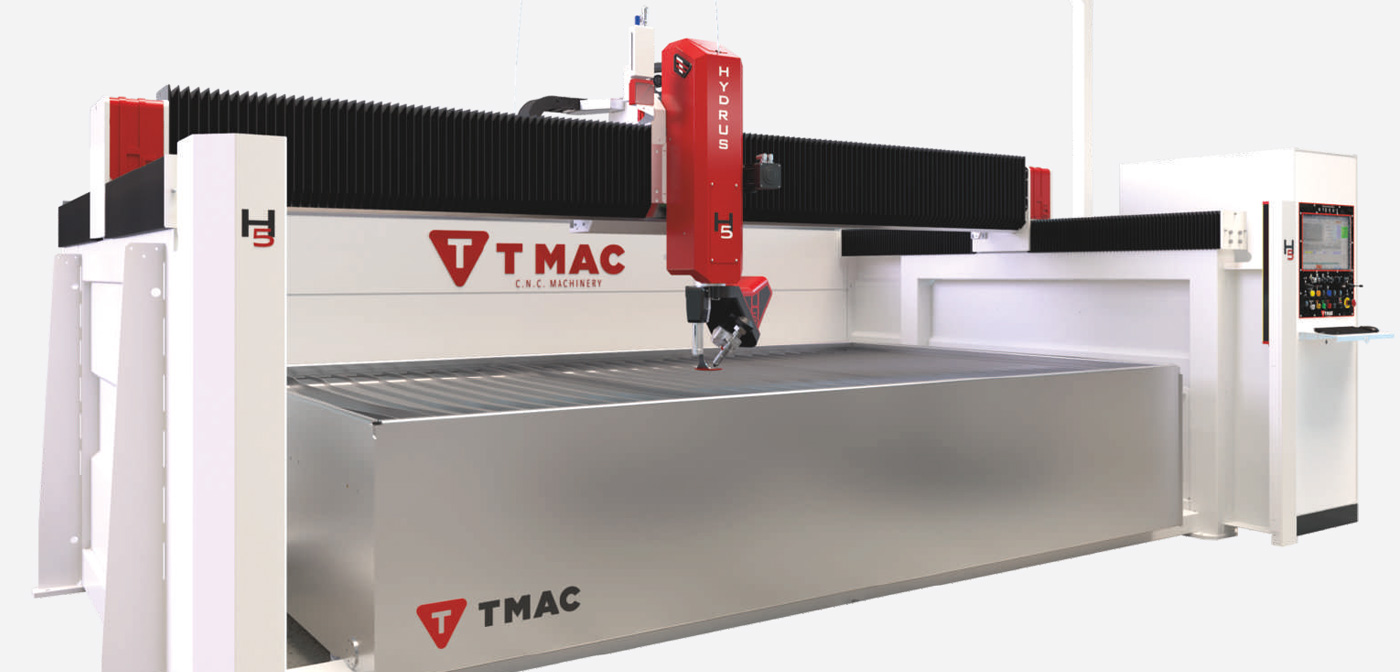

HYDRUS H5
Used for flat cutting by means of a high-pressure pump that emits a jet of water mixed with abrasive capable of pertorating and cutting with extreme precision the thickness of dillerent materials such as: marble, granite, stone, metals, plastic, paper, wood, glass ceramic. The parts are moved by a recirculating ball guide, precision rack and pinion gearbox. The Z axis is moved by means of a recirculating ball screw. A brushless-type motor for the axes completes the movement system, which, being composed of quality components, allows precision and repeatability of positioning down to a tenth of a millimetre, an indispensable feature for making precision cuts on surtaces destined for coupling such as inlays and mosaics.

5 interpolating axes
200 mm Z travel
Robust hot-dip galvanised steel construction
Painted stainless steel components
Automatic centralised lubrication
Brushless motors with absolute zero
High-precision recirculating ball bearing guides
