OMAG WATERJET CUTTING MACHINES FOR STONE
High-tech Italian Engineering for Marble Processing
OMAG, Italian leader in the design and construction of marble processing machines, offers innovative and high-precision solutions.
Our advanced technologies guarantee perfect cutting, shaping and finishing, enhancing the natural beauty of marble.
Trust OMAG for Made in Italy Quality
Omag SPA is one of the industry leaders in the production of machinery for processing marble, natural stone, quartzites, glass, ceramics and plastic material.
ABOUT OMAG waterjet CUTTING MACHINES
OMAG S.p.A., with an experience of almost five decades and a research and development department that constantly studies and works on new technologies, develops and builds work centers for different sectors to which it guarantees quality and reliability.
OMAG is present on the machine high performance automatics market and boasts great experience and an enviable knowhow in the field of cutting, polishing, sculpture. OMAG operates globally: the main markets are the Americas, Asia, Europe and Italy, all widely supported by a network of sales and assistance structures. OMAG is known worldwide thanks to the tradition and technological excellence of its products which, to date, is composed of a wide choice of numerically controlled work centers.

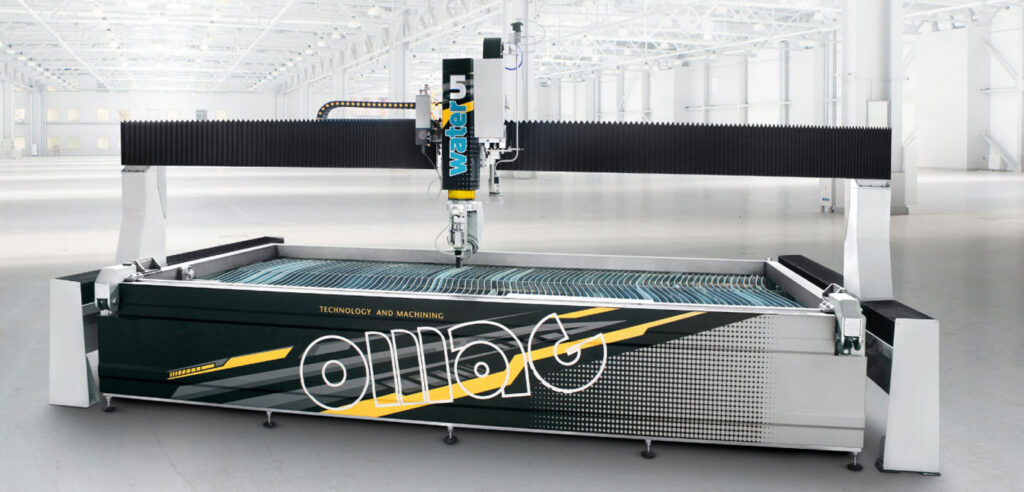

WATER 5 DATA SHEET
- Controlled and interpolated axes n° – 5
- Size of the slab support surface – 4.000 x 2.000 mm
- X-axis – Cross axis stroke – 4.000 mm
- Y-axis – Bridge axis stroke – 2.000 mm
- Z-axis – Vertical axis stroke 200 mm
- C-axis – Rotation on axis – ± 400°
- A-axis – Cutting head inclination with water – ± 70°
- X and Y axis movement speed – 42 mt/min
- Z-axis movement speed – 15 mt/min
- Table inclination with maximum tilting capacity – ** 80°
- Maximum static capacity applicable on the table – 3.000 Kg
- Maximum distance from the cutting head with water to the support surface – 150 mm
- Diameter minimum and maximum mountable discs
- Maximum cutting thickness with disc diameter Ø 300
- Disc motor power KW/HP and maximum rotation RPM
- Dimensions of cutting surface with “combined” disc and water cutting head
- Distance from the base of the cutting disc Ø 300 to the support surface

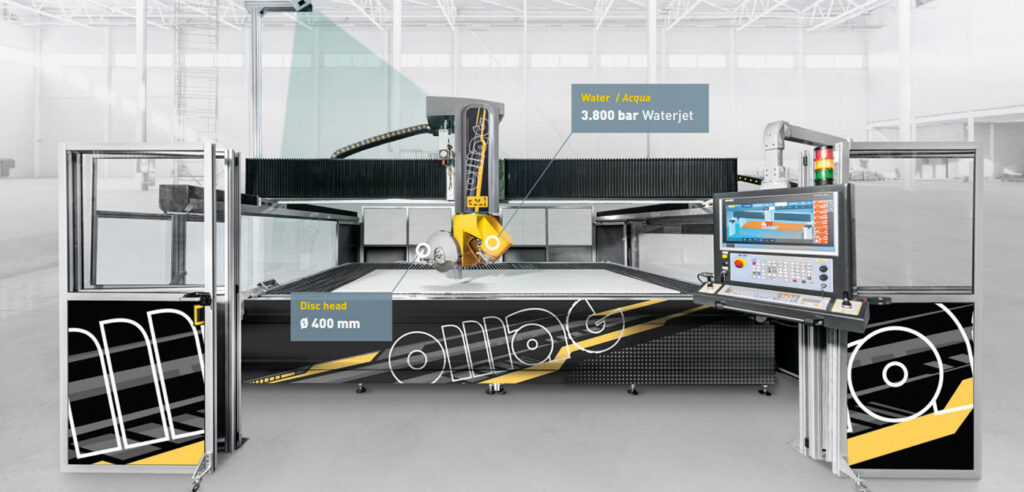

WATER 5 & SAW DATA SHEET
- Controlled and interpolated axes n° – 5
- Size of the slab support surface – 4.000 x 2.400 mm
- X-axis – Cross axis stroke – 4.100 mm
- Y-axis – Bridge axis stroke – 3.050 mm
- Z-axis – Vertical axis stroke – 400 mm
- C-axis – Rotation on axis – ± 400°
- A-axis – Cutting head inclination with water – ± 70°
- X and Y axis movement speed – 42 mt/min
- Z-axis movement speed – 15 mt/min
- Table inclination with maximum tilting capacity ** – 80°
- Maximum static capacity applicable on the table – 3.000 Kg
- Maximum distance from the cutting head with water to the support surface -150 mm
- Diameter minimum and maximum mountable discs – Ø 300 ÷ 400
- Maximum cutting thickness with disc diameter – Ø 300 – 71 mm
- Disc motor power KW/HP and maximum rotation RPM – 7,5 Kw 3600 Rpm
- Dimensions of cutting surface with “combined” disc and water cutting head – 3.800 x 2.250 mm
- Distance from the base of the cutting disc Ø 300 to the support surface – 150 mm
