ESAB CNC WATERJET CUTTING MACHINES
ESAB Corporation is a world leader in fabrication and specialty gas control technology, providing our partners with advanced equipment, waterjet technology consumables, automation, robotics, and digital solutions which enable the everyday and extraordinary work that shapes our world.
One Partner. Total Lifetime Support.
With ESAB, you get more than cutting technology—you get a commitment to uptime. From installation to upgrades and retrofits, our global service network and warranty keep your system performing at its best. Whether you need remote assistance, spare parts, or preventative maintenance, ESAB’s experts are your single source for cutting success.
ABOUT ESAB HYDROCUT CUTTING MACHINES

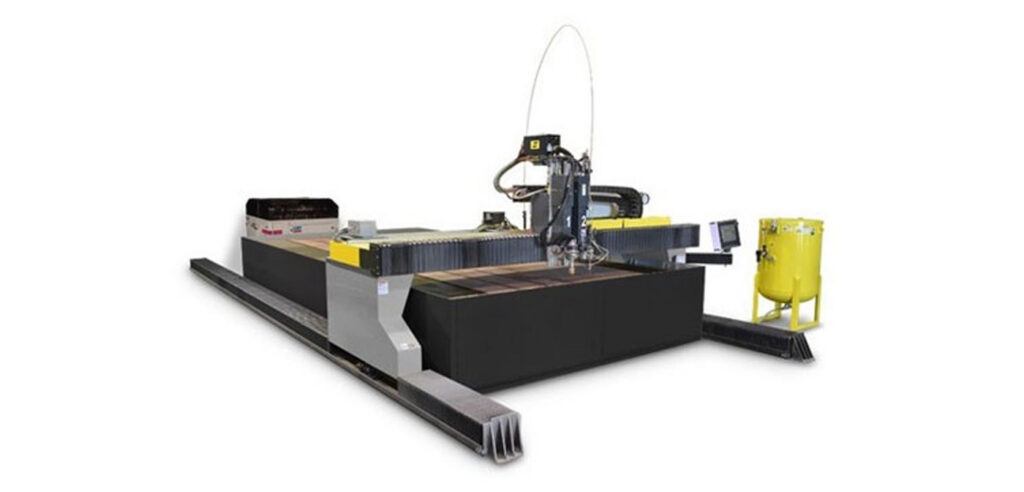

The Hydrocut HDX Waterjet Cutting System is a heavy-duty gantry cutting machine. Floor mounted crane rails and a rigid gantry are combined with digital AC drive amplifiers, brushless AC motors, and precision gearboxes. The result is a high-performance multi-process capable machine. The Hydrocut HDX easily combines waterjet with other cutting and marking processes, such as plasma cutting, plasma marking, oxy-fuel cutting, or plate lettering or marking tools.
KEY FEATURES:
Ultra-High Pressure Waterjet Precision
Cuts virtually any material with exceptional accuracy

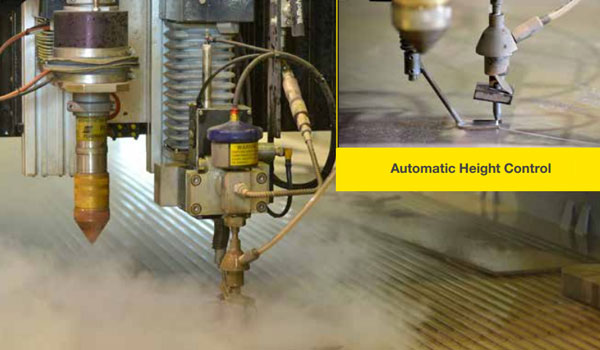

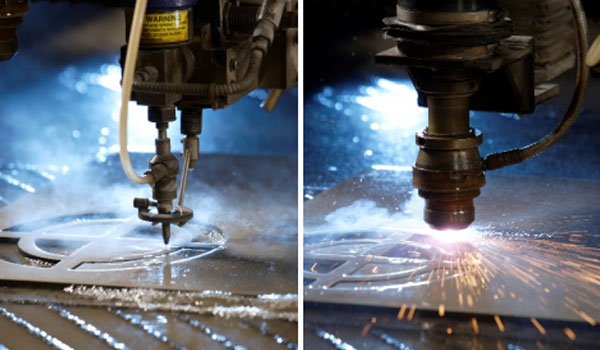

Dual-Process Advantage (Waterjet + Plasma)
Combines waterjet precision with plasma cutting speed on the same part
Reduced Cost per Part
Optimizes process selection to significantly lower production costs
Maximum Process Versatility
Supports a wide range of cutting and marking processes for diverse fabrication needs
Built for Large-Scale Production
Ideal for large work areas and high-capacity applications
High Productivity Performance
Enables faster throughput by using the most efficient cutting process for each feature
Flexible Multi-Tool Configuration
Accommodates multiple cutting heads and process combinations on a single gantry
Hydrocut™ HDX – Specifications Overview
| Category | Specification |
|---|---|
| Machine Type | Large gantry, multi-process cutting system |
| Supported Processes | Waterjet, Plasma, Oxy-Fuel, Marking & Lettering |
| Max Waterjet Stations | Up to 4 |
| Max Plasma Stations | Up to 2 |
| Max Oxy-Fuel Torches | Up to 2 |
Cutting Capacity
| Process | Maximum Thickness |
|---|---|
| Waterjet | Up to 150 mm (6 in.) |
| Plasma | Up to 50 mm (2 in.) |
| Oxy-Fuel | Up to 150 mm (6 in.) |
Machine Dimensions & Layout
| Parameter | Range / Value |
|---|---|
| Track Width | 3500–6500 mm (137.8–255.8 in.) |
| Overall Machine Width | 5400–7150 mm (212–281 in.) |
| Machine Height | 2900 mm (114 in.) |
| Table Height | 866 ±25 mm (34 ±1 in.) |
| Parking Length | ~3000 mm (10 ft) |
Performance
| Metric | Value |
|---|---|
| Maximum Positioning Speed | 1000 in/min (24 m/min) |
Key Value Highlights
- Multi-process flexibility on a single gantry (waterjet + plasma + oxy-fuel)
- Configurable for high productivity with multiple cutting heads
- Designed for large-format fabrication (up to ~18 ft × 56 ft work envelope)
- Combines waterjet precision with plasma speed for lower cost per part
